Check if two players are facing each other
26 replies
1
31.05.21 02:14:52 am
Hello, how can I check if two players are facing each other (I'm trying to override the shield logic with one of my own, but I got stuck at the part where I need to check for the angles).
All I need is some simple function like so:
Of course, feel free to guide me to reaching the solution by myself, either way works!
Thanks.
All I need is some simple function like so:
Code:
1
2
3
4
5
6
7
8
2
3
4
5
6
7
8
local function RotationsFacingEachOther(rotA, rotB)
if <math stuffs> then
return true
end
return false
end
if <math stuffs> then
return true
end
return false
end
Of course, feel free to guide me to reaching the solution by myself, either way works!
Thanks.
It's hard being the best girl in the whole entire world
31.05.21 09:03:17 am
That should be simple - it's basically if rotA = 360 - rotB (although you might want to use a margin here that gives you a wider range of angles the closer the opponent is).
You could also go all out Linear Algebra on this and assume the players viewing direction is a line and your opponent a circle and you check for collisions that way (and in reverse, too if you want both to be facing each other).
You could also go all out Linear Algebra on this and assume the players viewing direction is a line and your opponent a circle and you check for collisions that way (and in reverse, too if you want both to be facing each other).
Hador
31.05.21 11:45:34 am
Well, I tried this:
And my output when doing this
It seems to be too far off, even when we're pretty much looking at each other.
Code:
1
2
3
4
5
6
7
8
9
2
3
4
5
6
7
8
9
local function rotations_facing_each_other(rotA, rotB)
print(rotA, 360 -rotB)
if rotA == 360 -rotB then
return true
end
return false
end
print(rotA, 360 -rotB)
if rotA == 360 -rotB then
return true
end
return false
end
And my output when doing this
Code:
in the console is this:1
lua print(rotations_facing_each_other(player(1,'rot'),player(2,'rot')))
Code:
1
2
2
179.76782226563 357.00073242188
false
false
It seems to be too far off, even when we're pretty much looking at each other.
It's hard being the best girl in the whole entire world
31.05.21 12:12:57 pm
i suggest to look if the delta between the angles is 180.
In code, this means:
as
Hador suggested, i would use a margin, since it is really hard to get exactly 180 degree, for example like this:
edit: watch out, i noticed that player(id,"rot") return a value between -90 and 270. But - if i'm not wrong - it should work anyway. If this cause problems simply use
In code, this means:
Code:
1
if math.abs(rotA-rotB) == 180 then ...
as
Hador suggested, i would use a margin, since it is really hard to get exactly 180 degree, for example like this:Code:
1
if math.abs(rotA-rotB) <= 190 and math.abs(rotA-rotB) >= 170 then ...
edit: watch out, i noticed that player(id,"rot") return a value between -90 and 270. But - if i'm not wrong - it should work anyway. If this cause problems simply use
rotA % 360
loading...
31.05.21 03:20:30 pm
I tried the following:
With and without the
I don't seem to get consistent results.
When I look at the player holding the shield, it only sometimes works properly, and some other times, it reports
Any idea on why that might be?
Code:
1
2
3
4
5
6
7
8
9
10
2
3
4
5
6
7
8
9
10
function rotations_facing_each_other(rotA, rotB)
local abs = math.abs((rotA % 360) - (rotB % 360))
if abs <= 190 and abs >= 170 then
return true
end
return false
end
local abs = math.abs((rotA % 360) - (rotB % 360))
if abs <= 190 and abs >= 170 then
return true
end
return false
end
With and without the
% 360
part.I don't seem to get consistent results.
When I look at the player holding the shield, it only sometimes works properly, and some other times, it reports
true
when it's supposed to be false
.Any idea on why that might be?
It's hard being the best girl in the whole entire world
31.05.21 03:26:07 pm
@ Mami Tomoe: Print out
Mami Tomoe: Print out abs
to see whether that if statement even makes sense in the first place. Shit your pants:
Outlast II Mod (29) | Create your UI faster: CS2D UI Framework
Outlast II Mod (29) | Create your UI faster: CS2D UI Framework 31.05.21 03:46:14 pm
@ Masea: In order to get the function to return
But, it still returns true even when I'm not pointing at the bot, I think it's hard to explain, someone might need to look into that.
Equip a bot with a Tactical Shield and just look at them and test to see if the function returns
Masea: In order to get the function to return true
when I hit the shield I had to do this:Code:
1
2
3
4
5
6
7
8
9
10
11
2
3
4
5
6
7
8
9
10
11
function rotations_facing_each_other(rotA, rotB)
local abs = math.abs((rotA % 360) - (rotB % 360))
hc.event(0,tostring(abs))
if abs >= 120 and abs <= 240 then
return true
end
return false
end
local abs = math.abs((rotA % 360) - (rotB % 360))
hc.event(0,tostring(abs))
if abs >= 120 and abs <= 240 then
return true
end
return false
end
But, it still returns true even when I'm not pointing at the bot, I think it's hard to explain, someone might need to look into that.
Equip a bot with a Tactical Shield and just look at them and test to see if the function returns
true
when it's supposed to. It's hard being the best girl in the whole entire world
31.05.21 04:19:03 pm
Calculate the angle of the line between the two players:
And then check if angle1 is "close" to the view rotation of player1 and angle2 is close to the view rotation of player2
Quote:
angle1 = atan2(y2 - y1, x2 - x1)
angle2 = atan2(y1-y2, x1-x2)
angle2 = atan2(y1-y2, x1-x2)
And then check if angle1 is "close" to the view rotation of player1 and angle2 is close to the view rotation of player2
Code:
1
2
3
2
3
if abs(angle1-rot1) < 20 and abs(angle2-rot2) < 20:
return true
return false
return true
return false
https://ohaz.engineer - Software Engineering
31.05.21 04:32:11 pm
i've tested it now.
it does kinda work, but this part of the code only test, if the rotation of the players is "right".
Look here: https://prnt.sc/13mwhof
For your code both cases are the same.
edit: ohaz was faster
it does kinda work, but this part of the code only test, if the rotation of the players is "right".
Look here: https://prnt.sc/13mwhof
For your code both cases are the same.
edit:
ohaz was faster loading...
31.05.21 04:35:57 pm
@ ohaz: This always returns
ohaz: This always returns false
:Code:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
function rotations_facing_each_other(p, id)
local atan2 = math.atan2
local abs = math.abs
local x1, y1 = player(p, 'x'), player(p, 'y')
local x2, y2 = player(id, 'x'), player(id, 'y')
local angle1 = atan2(y2 - y1, x2 - x1)
local angle2 = atan2(y1 - y2, x1 - x2)
if abs(angle1 - player(p, 'rot')) < 32 and abs(angle2 - player(id, 'rot')) < 32 then
return true
end
return false
end
local atan2 = math.atan2
local abs = math.abs
local x1, y1 = player(p, 'x'), player(p, 'y')
local x2, y2 = player(id, 'x'), player(id, 'y')
local angle1 = atan2(y2 - y1, x2 - x1)
local angle2 = atan2(y1 - y2, x1 - x2)
if abs(angle1 - player(p, 'rot')) < 32 and abs(angle2 - player(id, 'rot')) < 32 then
return true
end
return false
end
It's hard being the best girl in the whole entire world
31.05.21 09:03:27 pm
The player-rotation (player(id,"rot")) is kinda scary. It goes from -90 to +270.
Use this script on a local server to see what I mean:
You wrote: atan(deltaY / deltaX) - player(p, 'rot') (in line 9, 11) which does NOT make sense. Your atan2 is in radiant while your rotation is in "degree"
Use this script on a local server to see what I mean:
Code:
1
2
3
4
2
3
4
addhook("ms100","yAy")
function yAy()
msg("Rotation: "..player(1,"rot"))
end
function yAy()
msg("Rotation: "..player(1,"rot"))
end
You wrote: atan(deltaY / deltaX) - player(p, 'rot') (in line 9, 11) which does NOT make sense. Your atan2 is in radiant while your rotation is in "degree"
edited 2×, last 31.05.21 09:14:50 pm
Share time limited free games here
31.05.21 09:11:52 pm
@ Bowlinghead: Will using
Also, should I always
Bowlinghead: Will using math.rad
on the two rotations help?Also, should I always
rot % 360
my player rotations? Is it better? Should I write a wrapper for that? It's hard being the best girl in the whole entire world
31.05.21 09:37:30 pm
Im by no means an expert, but I would rather convert everything into degree for more precision and less perfomance costs.
Since I dont have further information: I assume your function runs on a timer, hence returns most of the time "FALSE".
Therefore I would split the directions the player is looking into 4 quadrants. Then I only have to deal with 0-90° and not with ugly negative numbers.
If one is looking top left and the other also top left, there is no point in doing heavy math.
Since I dont have further information: I assume your function runs on a timer, hence returns most of the time "FALSE".
Therefore I would split the directions the player is looking into 4 quadrants. Then I only have to deal with 0-90° and not with ugly negative numbers.
If one is looking top left and the other also top left, there is no point in doing heavy math.
Share time limited free games here
31.05.21 09:55:09 pm
@ Bowlinghead:
It's used on the hit hook, to verify that a player is shooting onto another player's shield.
Bowlinghead: It's used on the hit hook, to verify that a player is shooting onto another player's shield.
It's hard being the best girl in the whole entire world
31.05.21 10:02:33 pm
I dont think that changes my argument, but I dunno. I just dont want to think about shotguns that shoot in a wide angle and you hit with the most outer bullet...
What is the shield length by the way?
What is the shield length by the way?
Share time limited free games here
31.05.21 10:22:11 pm
Bowlinghead has written:What is the shield length by the way?

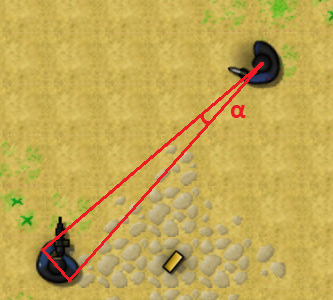

The angle will be another depending on how close you're to the shield.
Code:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
local atan2 = math.atan2
local deg = math.deg
local abs = math.abs
function point_direction(x1, y1, x2, y2)
return -deg(atan2(x1 - x2, y1 - y2))
end
function players_facing_each_other(p1, p2)
local angle = 12
local p1_rot, x1, y1 = player(p1, 'rot'), player(p1, 'x'), player(p1, 'y')
local p2_rot, x2, y2 = player(p2, 'rot'), player(p2, 'x'), player(p2, 'y')
p1_rot = (p1_rot < 0) and (p1_rot + 360) or p1_rot
p2_rot = (p2_rot < 0) and (p2_rot + 360) or p2_rot
local p1_dir = p1_rot - 180
local p2_dir = p2_rot - 180
local dir1 = point_direction(x2, y2, x1, y1)
local dir2 = point_direction(x1, y1, x2, y2)
if (abs(abs(dir1) - abs(p1_dir)) <= angle) and (abs(abs(dir2) - abs(p2_dir)) <= angle) then
return true
end
return false
end
local deg = math.deg
local abs = math.abs
function point_direction(x1, y1, x2, y2)
return -deg(atan2(x1 - x2, y1 - y2))
end
function players_facing_each_other(p1, p2)
local angle = 12
local p1_rot, x1, y1 = player(p1, 'rot'), player(p1, 'x'), player(p1, 'y')
local p2_rot, x2, y2 = player(p2, 'rot'), player(p2, 'x'), player(p2, 'y')
p1_rot = (p1_rot < 0) and (p1_rot + 360) or p1_rot
p2_rot = (p2_rot < 0) and (p2_rot + 360) or p2_rot
local p1_dir = p1_rot - 180
local p2_dir = p2_rot - 180
local dir1 = point_direction(x2, y2, x1, y1)
local dir2 = point_direction(x1, y1, x2, y2)
if (abs(abs(dir1) - abs(p1_dir)) <= angle) and (abs(abs(dir2) - abs(p2_dir)) <= angle) then
return true
end
return false
end
Now what you need to do is to edit the
angle
, depending on how far the players are. Because the close players are, the wider angle is.
I know how to calculate x1 y1 and x2 y2 of player width positions, but I have no idea how to deal with the 3 vectors and calculate the α (alpha).
edited 3×, last 01.06.21 12:01:05 am
01.06.21 01:51:51 am
Calculating angles is more like a workaround.
This is how it should be solved properly using vectors.
This is how it should be solved properly using vectors.
Code:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
function Dot(a, b)
return((a.x*b.x)+(a.y*b.y))
end
function Distance(a, b)
return math.sqrt((a.x-b.x)*(a.x-b.x)+(a.y-b.y)*(a.y-b.y))
end
function PointToLine(pixelPos, vA, vB)
local v0, v1 = {}, {}
v0.x = vB.x - vA.x
v0.y = vB.y - vA.y
local sqrt = math.sqrt(v0.x * v0.x + v0.y * v0.y)
v0.x = v0.x / sqrt
v0.y = v0.y / sqrt
v1.x = pixelPos.x - vA.x
v1.y = pixelPos.y - vA.y
local t = Dot(v0, v1)
if (t <= 0) then
return(vA)
elseif (t >= Distance(vA, vB)) then
return(vB)
end
local v2 = {}
v2.x = vA.x + v0.x * t
v2.y = vA.y + v0.y * t
return(v2)
end
function PlayersFaceEachOther(pid1, pid2)
if (player(pid1, "exists") == false or player(pid2, "exists") == false) then
return(false);
end
if (player(pid1, "health") < 1 or player(pid2, "health") < 1) then
return(false)
end
local p1, p2 = {}, {}
local p1raycast, p2raycast = {}, {}
-- needs check if player is in other player screen
-- player 1
p1.x = player(pid1, "x")
p1.y = player(pid1, "y")
p1.rot = math.rad(player(pid1, "rot") - 90)
p1raycast.x = p1.x + math.cos(p1.rot) * 320
p1raycast.y = p1.y + math.sin(p1.rot) * 320
-- player 2
p2.x = player(pid2, "x")
p2.y = player(pid2, "y")
p2.rot = math.rad(player(pid2, "rot") - 90)
-- raycast offsets
p2raycast.x = p2.x + math.cos(p2.rot) * 320
p2raycast.y = p2.y + math.sin(p2.rot) * 320
-- raycast p1
p1vec = PointToLine(p1, p2, p2raycast)
p2seeOther = Distance(p1vec, p1) < 16
-- raycast p2
p2vec = PointToLine(p2, p1, p1raycast)
p1seeOther = Distance(p2vec, p2) < 16
-- combine results
return(p1seeOther and p2seeOther)
end
function always()
seeEachOther = PlayersFaceEachOther(1, 2)
if (seeEachOther) then
parse("msg seeeachother *"..os.clock())
end
end
addhook("always", "always")
return((a.x*b.x)+(a.y*b.y))
end
function Distance(a, b)
return math.sqrt((a.x-b.x)*(a.x-b.x)+(a.y-b.y)*(a.y-b.y))
end
function PointToLine(pixelPos, vA, vB)
local v0, v1 = {}, {}
v0.x = vB.x - vA.x
v0.y = vB.y - vA.y
local sqrt = math.sqrt(v0.x * v0.x + v0.y * v0.y)
v0.x = v0.x / sqrt
v0.y = v0.y / sqrt
v1.x = pixelPos.x - vA.x
v1.y = pixelPos.y - vA.y
local t = Dot(v0, v1)
if (t <= 0) then
return(vA)
elseif (t >= Distance(vA, vB)) then
return(vB)
end
local v2 = {}
v2.x = vA.x + v0.x * t
v2.y = vA.y + v0.y * t
return(v2)
end
function PlayersFaceEachOther(pid1, pid2)
if (player(pid1, "exists") == false or player(pid2, "exists") == false) then
return(false);
end
if (player(pid1, "health") < 1 or player(pid2, "health") < 1) then
return(false)
end
local p1, p2 = {}, {}
local p1raycast, p2raycast = {}, {}
-- needs check if player is in other player screen
-- player 1
p1.x = player(pid1, "x")
p1.y = player(pid1, "y")
p1.rot = math.rad(player(pid1, "rot") - 90)
p1raycast.x = p1.x + math.cos(p1.rot) * 320
p1raycast.y = p1.y + math.sin(p1.rot) * 320
-- player 2
p2.x = player(pid2, "x")
p2.y = player(pid2, "y")
p2.rot = math.rad(player(pid2, "rot") - 90)
-- raycast offsets
p2raycast.x = p2.x + math.cos(p2.rot) * 320
p2raycast.y = p2.y + math.sin(p2.rot) * 320
-- raycast p1
p1vec = PointToLine(p1, p2, p2raycast)
p2seeOther = Distance(p1vec, p1) < 16
-- raycast p2
p2vec = PointToLine(p2, p1, p1raycast)
p1seeOther = Distance(p2vec, p2) < 16
-- combine results
return(p1seeOther and p2seeOther)
end
function always()
seeEachOther = PlayersFaceEachOther(1, 2)
if (seeEachOther) then
parse("msg seeeachother *"..os.clock())
end
end
addhook("always", "always")
edited 7×, last 01.06.21 04:12:32 am
01.06.21 03:28:14 am
@ SQ:
I'm going to assume I can just modify that always hook to be called whenever I need to check (which is on the hit hook).
I do have a question though, what does this mean:
Because in CS2D, there's a thing called
sv_offscreendamage, and depending on that, the check (if any was added) may or may not be needed.
SQ: I'm going to assume I can just modify that always hook to be called whenever I need to check (which is on the hit hook).
I do have a question though, what does this mean:
Code:
1
-- needs check if player is in other player screen
Because in CS2D, there's a thing called
sv_offscreendamage, and depending on that, the check (if any was added) may or may not be needed. It's hard being the best girl in the whole entire world
01.06.21 03:52:45 am
I just left note that you might need to check if other player is offscreen in some scenarios.
Separated the logics from always hook.
Separated the logics from always hook.
Code:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
function Dot(a, b)
return((a.x*b.x)+(a.y*b.y))
end
function Distance(a, b)
return math.sqrt((a.x-b.x)*(a.x-b.x)+(a.y-b.y)*(a.y-b.y))
end
function PointToLine(pixelPos, vA, vB)
local v0, v1 = {}, {}
v0.x = vB.x - vA.x
v0.y = vB.y - vA.y
local sqrt = math.sqrt(v0.x * v0.x + v0.y * v0.y)
v0.x = v0.x / sqrt
v0.y = v0.y / sqrt
v1.x = pixelPos.x - vA.x
v1.y = pixelPos.y - vA.y
local t = Dot(v0, v1)
if (t <= 0) then
return(vA)
elseif (t >= Distance(vA, vB)) then
return(vB)
end
local v2 = {}
v2.x = vA.x + v0.x * t
v2.y = vA.y + v0.y * t
return(v2)
end
function PlayersFaceEachOther(pid1, pid2)
if (player(pid1, "exists") == false or player(pid2, "exists") == false) then
return(false)
end
if (player(pid1, "health") < 1 or player(pid2, "health") < 1) then
return(false)
end
local p1, p2 = {}, {}
local p1raycast, p2raycast = {}, {}
-- needs check if player is in other player screen
-- player 1
p1.x = player(pid1, "x")
p1.y = player(pid1, "y")
p1.rot = math.rad(player(pid1, "rot") - 90)
-- player 2
p2.x = player(pid2, "x")
p2.y = player(pid2, "y")
p2.rot = math.rad(player(pid2, "rot") - 90)
-- raycast offsets
p1raycast.x = p1.x + math.cos(p1.rot) * 320
p1raycast.y = p1.y + math.sin(p1.rot) * 320
p2raycast.x = p2.x + math.cos(p2.rot) * 320
p2raycast.y = p2.y + math.sin(p2.rot) * 320
-- raycast p1
p1vec = PointToLine(p1, p2, p2raycast)
p2seeOther = Distance(p1vec, p1) < 16
-- raycast p2
p2vec = PointToLine(p2, p1, p1raycast)
p1seeOther = Distance(p2vec, p2) < 16
-- combine results
return(p1seeOther and p2seeOther)
end
function always()
seeEachOther = PlayersFaceEachOther(1, 2)
if (seeEachOther) then
parse("msg seeeachother *"..os.clock())
end
end
addhook("always", "always")
return((a.x*b.x)+(a.y*b.y))
end
function Distance(a, b)
return math.sqrt((a.x-b.x)*(a.x-b.x)+(a.y-b.y)*(a.y-b.y))
end
function PointToLine(pixelPos, vA, vB)
local v0, v1 = {}, {}
v0.x = vB.x - vA.x
v0.y = vB.y - vA.y
local sqrt = math.sqrt(v0.x * v0.x + v0.y * v0.y)
v0.x = v0.x / sqrt
v0.y = v0.y / sqrt
v1.x = pixelPos.x - vA.x
v1.y = pixelPos.y - vA.y
local t = Dot(v0, v1)
if (t <= 0) then
return(vA)
elseif (t >= Distance(vA, vB)) then
return(vB)
end
local v2 = {}
v2.x = vA.x + v0.x * t
v2.y = vA.y + v0.y * t
return(v2)
end
function PlayersFaceEachOther(pid1, pid2)
if (player(pid1, "exists") == false or player(pid2, "exists") == false) then
return(false)
end
if (player(pid1, "health") < 1 or player(pid2, "health") < 1) then
return(false)
end
local p1, p2 = {}, {}
local p1raycast, p2raycast = {}, {}
-- needs check if player is in other player screen
-- player 1
p1.x = player(pid1, "x")
p1.y = player(pid1, "y")
p1.rot = math.rad(player(pid1, "rot") - 90)
-- player 2
p2.x = player(pid2, "x")
p2.y = player(pid2, "y")
p2.rot = math.rad(player(pid2, "rot") - 90)
-- raycast offsets
p1raycast.x = p1.x + math.cos(p1.rot) * 320
p1raycast.y = p1.y + math.sin(p1.rot) * 320
p2raycast.x = p2.x + math.cos(p2.rot) * 320
p2raycast.y = p2.y + math.sin(p2.rot) * 320
-- raycast p1
p1vec = PointToLine(p1, p2, p2raycast)
p2seeOther = Distance(p1vec, p1) < 16
-- raycast p2
p2vec = PointToLine(p2, p1, p1raycast)
p1seeOther = Distance(p2vec, p2) < 16
-- combine results
return(p1seeOther and p2seeOther)
end
function always()
seeEachOther = PlayersFaceEachOther(1, 2)
if (seeEachOther) then
parse("msg seeeachother *"..os.clock())
end
end
addhook("always", "always")
edited 6×, last 01.06.21 12:03:44 pm
01.06.21 04:01:13 am
@ SQ: Thank you, I will test it out tomorrow!
EDIT:
I tried it, and it appears to be inconsistent as well, when I hit by standing at the left/right sides of the victim, it will register the hit, but when I aim for the same place while standing in front of the victim, it does not register.
SQ: Thank you, I will test it out tomorrow!EDIT:
I tried it, and it appears to be inconsistent as well, when I hit by standing at the left/right sides of the victim, it will register the hit, but when I aim for the same place while standing in front of the victim, it does not register.
edited 1×, last 01.06.21 12:05:57 pm
It's hard being the best girl in the whole entire world
